The cutting specialist for wet materials

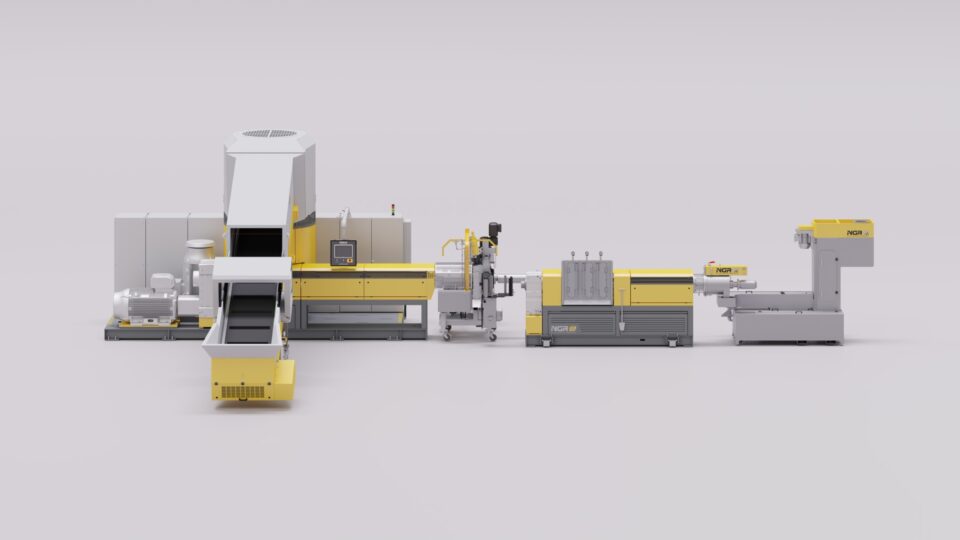

Cutter-compacter-extruder combination

If the material has a high moisture content, the plastic recycling system C:GRAN is the ideal solution. Flakes or films with a residual moisture up to  12 % are processed in this plastic recycling system without problems thanks to its excellent pre-drying properties.

Description

C:GRAN is distinguished by its advanced cutting geometry. For this, the fast-moving rotating blades in the cutter bin have been combined with efficiently arranged guides at the cutter bin outlet. In this way, the material is prepared for the extruder screw. C:GRAN is also an ideal option for a component of a cascade extruder or a compounding system.

ABMF is the automatic band-melt-filter perfectly matching C:GRAN. It has outstanding properties such as high degrees of filtering fineness, continuous extruder operation during the band filter transport, cyclic band filter replacement and fully automatic operation.

At a glance

  • Preparation of flakes and films with residual moisture up to 12 %
  • Output rate up to 2,500 kg/h (5,500 lbs/h) depending on type
  • Temperature regulation in the cutter bin
  • Ideal as a component of a cascade or compounding system
  • Makes a perfect combination with ABMF melt filter
Extruder screw Ø
Cutter bin Ø
max* kg/h
max* lbs/h
C:GRAN 85-110
85
1100
500
1100
C:GRAN 105-120
105
1200
700
1540
C:GRAN 125-150
125
2310
1050
2310
C:GRAN 145-160
145
2900
1300
2900
C:GRAN 165-170
165
1700
1800
4000
C:GRAN 185-200
185
2000
2100
4600
C:GRAN 205-200
205
2000
2500
5500

* Output values for LDPE according to NGR company standard, depending on material and quality.
In addition, NGR provides all the equipment for conveying pellets such as blower, pipes, cyclones and much more.

More materials: PC, PPS, ABS, Blends, …

Technology

The operating principle of C:GRAN

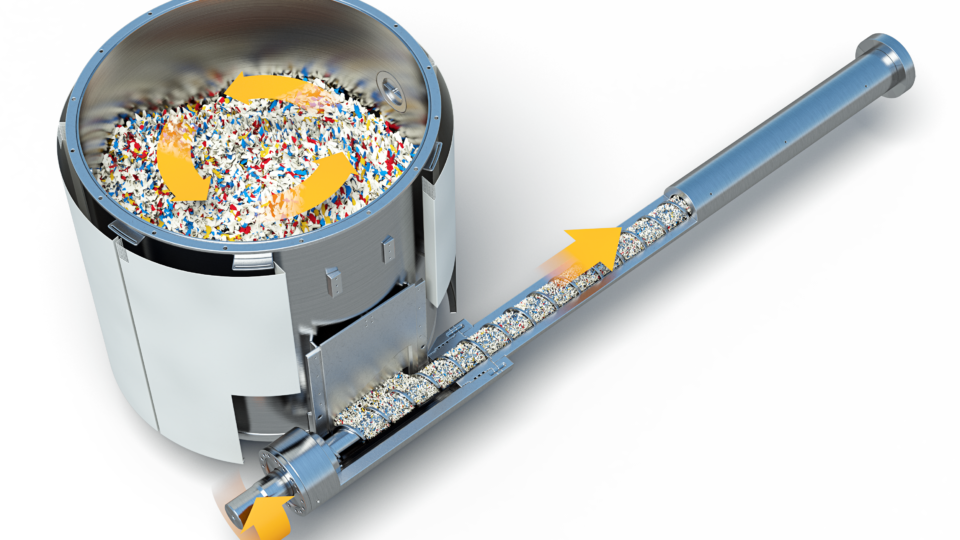

The plastic scrap is shredded in the cutter bin by rotating blades. Specially arranged guides ensure that the plastic scrap is further compressed in the direction of the rotating blades.

In the cutter bin. the additional plastic scrap is shredded, compressed, heated and fed into the extruder screw.

The advanced extruder screw design allows for better utilization of the material compaction from the cutter bin. This leads to an improved output rate at the desired high degree of homogenization and low energy input.



Processing of wet materials

Due to the high heating of the plastic scrap in the cutter bin, it is also possible to process wet materials, e.g. from washing lines, with residual moisture up to 12%. A partial drying or degassing of print colors or other additives is carried out during shredding and processing.

Optimized material processing

Thanks to the optimal new cutter design and efficiently arranged material guides, the material is well cut, compressed and heated. The high level of processing in the shortest possible time optimally fills the screw and thus provides high output rates with low energy consumption.

Temperature regulation in the cutter bin

During the cutting process in the cutter bin, the feeding into the cutter bin and the extruder is automatically regulated by temperature sensors.

Efficient extruder

The high level of processing of the material to be recycled and the optimized screw design for every material ensures best possible homogenization and highest output with low energy demand.

Extruder screw

Extruder screw

Extruder screw

Specially developed for the challenges of recycling, the extruder screws provide optimum melt homogeneity. The extruder screw, which was designed specifically for use with the cutter compactor, takes the already heated material and provides high output rates.

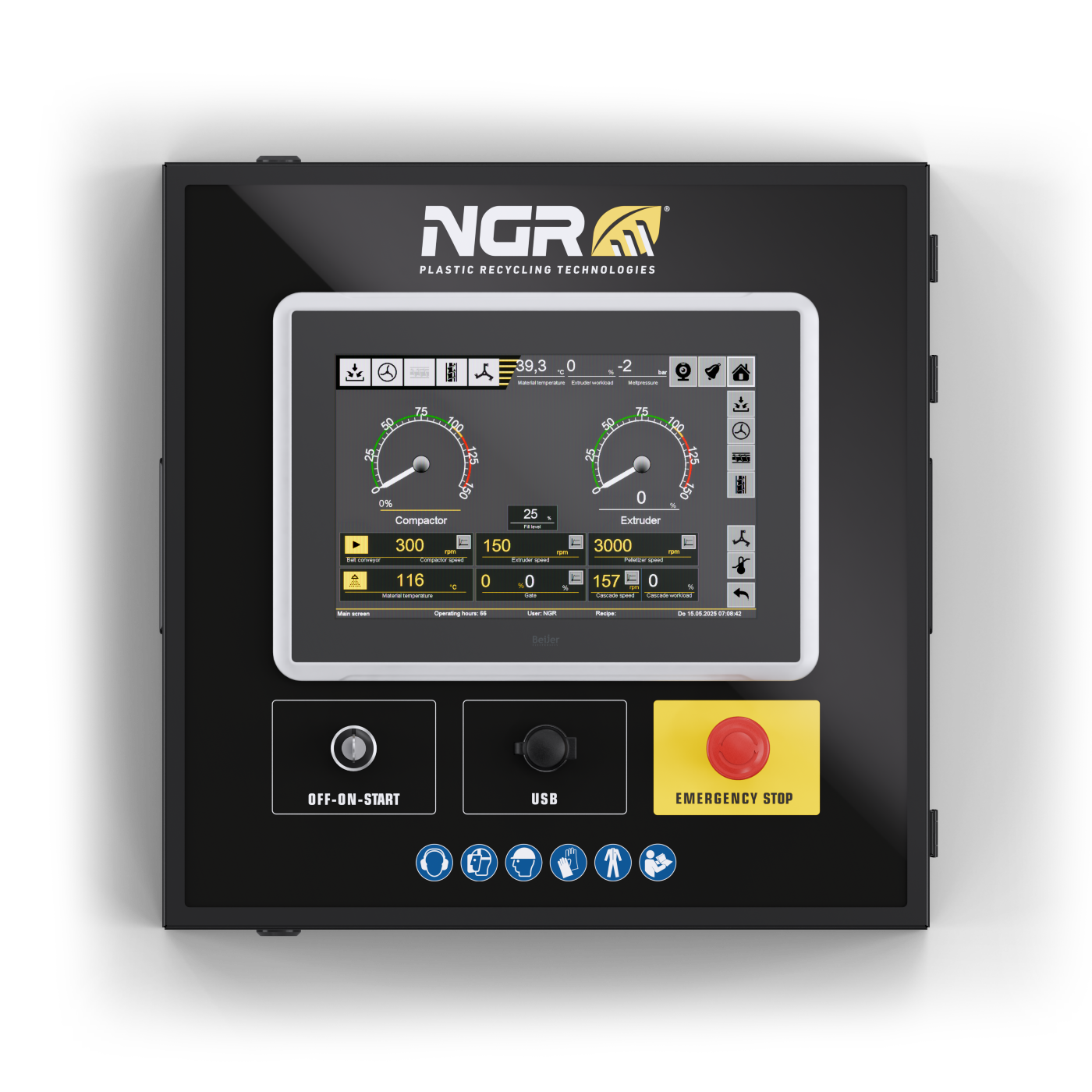

Control unit, touchscreen

Control unit

Control unit

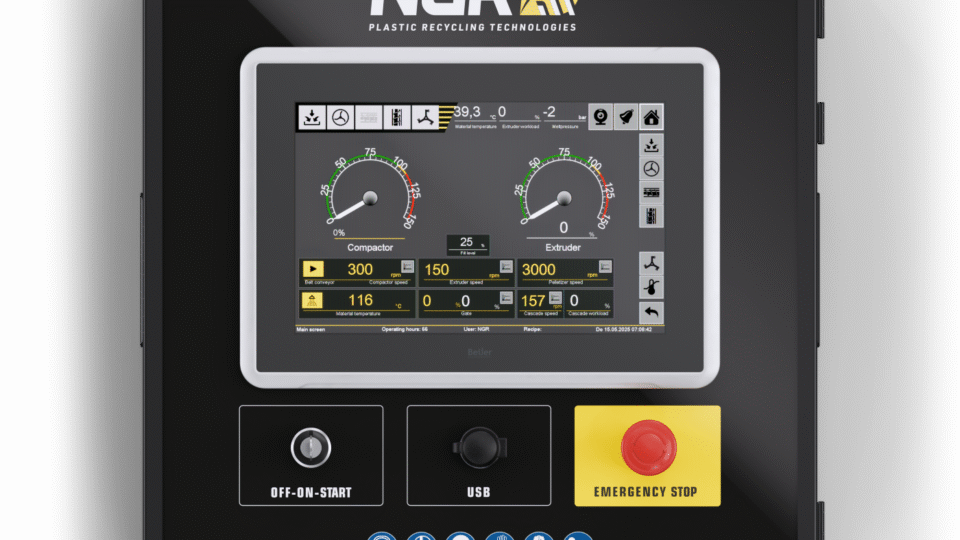

All equipment functions from feeding to pelletizing are controlled automatically from the easy-to-read NGR touchscreen. Recipes are managed in the operator control unit, which increases traceability, provides ease of use, and ensures equipment parameters are set properly.

High-quality pellets

High-quality pellets

Pellet size

In addition to high quality, the uniform pellet size also provides for homogeneous mixture in new material. NGR thus plays an indirect role in ensuring consistent quality in the final product.

Add-Ons

  • Feed-in

  • Degassing

  • Pelletization

  • Filter

  • Test equipment

Feed-in

Roll feeder

Roll feeder

Roll Feeder

With variable feed speed, roll scrap is treated in a process-controlled manner. The virtually unmanned machine is fed continuously. The roll feeder can be operated at the same time with other types of feeding (e.g. conveyor belt).

Conveyor belt

Conveyor belt

Conveyor belt

The conveyor belt transports the feed material through a metal detector into the feed hopper. The belt is stopped automatically, if metallic matter is detected in order to remove it.

Dosing unit for additives

Dosing unit

Dosing unit

Additives such as color pigments, CaCo3, compatibilizers can be added to the material flow in a process-controlled manner. Dosing systems for pellet and/or powdered additives are available.

Degassing

Single venting C-GRAN

Single venting

Single Venting

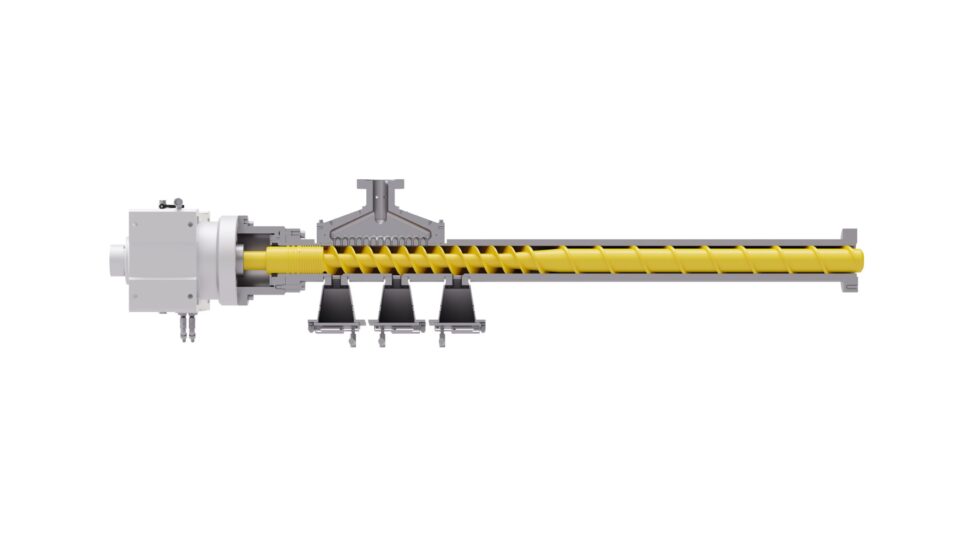

Designed for light printing and low humidity. The vacuum degassing system includes a vacuum pump and is connected to two venting ports on the extruder.

Double venting C-GRAN

Double venting

Double venting

Designed for plastics printed, for example, on all surfaces and/or moist plastics.

Heavy duty vacuum pump

Heavy duty vacuum pump

High-performance vacuum

In addition to the modular venting unit, a combination of water ring pump and high-performance vacuum pump runs in order to increase the vacuum performance (e.g. PET processing).

Vacuum pump with closed water circuit

Vacuum pump with closed water circuit

Vacuum pump with closed water circuit

Each venting combination can be equipped with a closed water circuit. The fresh water consumption at the vacuum pump is thereby reduced significantly.

Pelletization

HD pelletizer, hot die-face pelletizer

HD pelletizer

Hot-die Waterring Pelletizer (HD)

For thermoplastics with a higher viscosity. The melt exits through the wear-resistant die plate, and is knocked off by the pelletizer blades. The pellets cooled in the water ring are flushed out, dried in the centrifuge and discharged. By adjusting the blade pressure, pelletizer blades provide a long service life; replacement is quick and easy.

Strand pelletizer

Strand pelletizer

Strand pelletizer (SP)

For low-viscosity melts. The melt emerges from strand nozzles, is cooled in a water bath, dried by means of a fan and cut to the desired length in the pelletizer. The result is cylindrical, dust-free pellets with excellent mixing properties.

Automatic strand pelletizer

Automatic strand pelletizer

Automatic strand pelletizer (A-SP)

In addition to the benefits of the SP, the A-SP option offers the added convenience of fully automated start-up. The strands are transported automatically by a water slide to the pelletizer, and the pellets are dried in a centrifuge.

Under Water Pelletizer

Underwater pelletizer (UWP)

For difficult-to-process (e.g. sticky) polymers or thermoplastics with a very high melt flow index. The melt emerges from the die plate and is knocked off by the pelletizer blades. The whole process takes place under water. In the centrifuge, the pellets are separated from the process water and dried.

Filter

Double piston screen changer

Double piston screen changer

Double-piston screen changer

For light impurities. The hydraulically operated double-piston screen changer allows continuous filtration of the melt. This allows a screen change without process shutdown.

Backflush screen changer

Backflush screen changer

Back-flush screen changer

For heavily contaminated materials. The hydraulically operated double-piston screen changer filters the melt in a process-controlled and continuous manner. The integrated backwash device automatically cleans the screens. The number of back-flushes and the related service life of the screens depend on the degree of contamination of the material.

4K Backflush screen changer

4K Backflush screen changer

4K back-flush filtration

For heavily contaminated materials. In contrast to the standard backflush screen changer with 2 screen cavities, this system is equipped with 4 screen cavities. The double filtration surface with the same frame size results in a longer filter life.

Automatic band melt filter

Automatic band melt filter

Band melt filter

For high contamination at high throughput rates. With the lowest melt losses and low filter costs, fully automatic operation ensures excellent filtration results. It is used particularly for post-consumer plastics.

High-performance melt filter

High-performance melt filter

The continuous melt filters in the ERF series are suitable for a wide range of moderate and highly contaminated polymers and provides a pressure constant operation, long screen lifes, very low melt losses and a compact design. By the permanently rotating filter drum foreign particles are being constantly and effectively removed, depending on the application ERF melt filters enables throughputs from 150 to 10,000 kg/h.

Test equipment

Flow scale

Flow scale

Flow scale

The throughput scale is integrated in the machine control system and displays the current production output in kg/h (lbs/hr). The data can be logged in a BDE system.

Gas control unit

Gas control unit

Gas control unit

This unit provides quality control by continuously measuring pellet density. Based on preset parameters, the unit determines whether to switch the gates to the second choice or to scrap when this value falls below a setpoint.   Monitoring is inline and integrated continuously in the production process.

Online viskosimeter

Online viskosimeter

Online Viscometer

For continuous melt viscosity measurement. Melt is taken from the production extruder, the viscosity is measured, and then the melt is returned to the extruder.
Based on the differential pressure across the capillary, the viscosity of the material (IV value, MVR) is determined by means of a stored recipe.

Gallery

Images

Solid engineering, high-quality materials and precise execution ensure a long service life for equipment.

Maintenance-friendly access to moveable parts allows you to quickly change material, efficiently disassemble and assemble wear and tear parts, and minimizes downtime.

The high-speed rotating blades combined with the efficiently arranged guides in the cutter bin ensure fast energy input and heating of the shredded plastic.

Testimonials

Capital Polymers is beyond ecstatic with our very first NGR.  We are so happy with how our NGR runs and how user friendly it is.  We were blessed with the best technicians, they were so helpful with training our team and the installation was very quick and professional.  We are looking forward to adding more NGR’s in the future.

Jimmy Hearod, General Manager
Capital Polymers, USA

Support

Our all-round service – satisfaction included

Excellent technology calls for excellent service. Our 100% commitment to flawless service ensures maximal cost efficiency and minimal downtime.

Our services

  • Service hubs for the fastest possible processing of all maintenance and repair work
  • Spare parts centers for flexible responses to strong markets
  • High spare parts availability thanks to particularly high stock levels in Europe and North America
  • Worldwide extruder screw production for short-term production or repairs
  • Easy ordering of parts in our webshop
  • Starter and spare parts packages for every new machine
